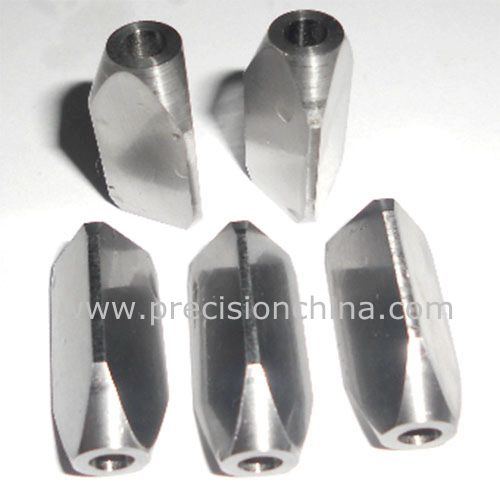

Description: Precision Turning Part
Material :1.17131
Heat Treatment: case hardened
Hardness: 56~58HRC
Exactitud: ± 0.01MM
Tooling Process:fine turning -Quenching–cleaning-Inspectio
n-Packing;
Line Pressure Driven, Hydraulically Controlled.
Bi-Level Altitude Pilot
-No float, simple installation
-On/Off service
-No cavitation damage
-Suitable for low quality water
Advanced Globe Hydro-Efficient Design
-Unobstructed flow path
-Single moving part
-High flow capacity
Fully Supported & Balanced Diaphragm
-Requires low opening and actuation pressure
-Progressively restrains valve closing
-Prevents diaphragm distortion
User Friendly Design
-Easy level setting
-Simple in-line inspection and service
Typical Applications
High Level Reservoirs and Water Towers
Unavailable Power Supply Locations
Low Supply Pressure Systems
Low Noise Generation Requirements
Energy Cost-Critical Systems
Systems with Poor Water Quality
Level Sustaining at Reservoir Outlet
PDF English - IR 450-80-XZ Data Sheet
PDF English - IR Engineering 400
PDF English - Ordering Guid 400 Series
PDF English - Spare Parts - Irrigation
PDF English - IR-450-80-XZ IOM
